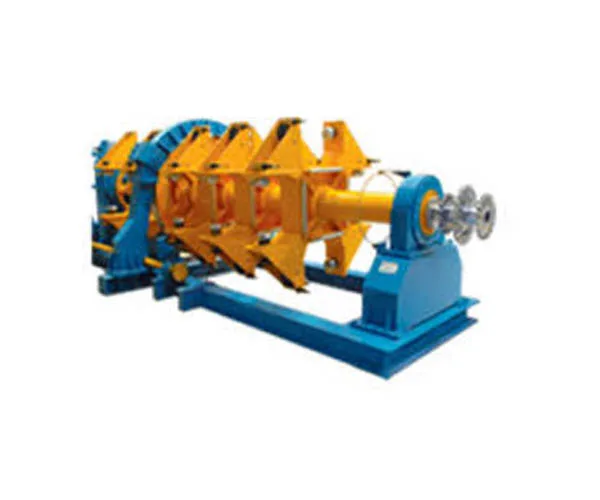

Rigid Strander At CTM we are manufacturing both rigid and planetary stranding machines. These machines are manufactured in various configurations i.e. 19/37/54/61/91/127 bobbin of different sizes. We supply Rigid stranding machines in both fork and cage type design. Our machines are used for stranding of copper/Aluminium/Steel wires or AAA / ACSR-Sector shape, round shape and spiral conductors. We also manufacture stranding machines for making of Milliken/HTLS Conductors that are being largely used these days for replacing of ACSR, as these conductors increasing thermal rating of transmission line with the same diameters as of ACSR conductors.
Technical Characteristics
Wire size
Copper :1.50mm to 4.00mm dia Aluminium:2.00 mm to 5.00 mm dia Al.Alloy: 1.50mm to 4.00mm dia
Configuration
1+6+12+18+24+30
Bobbin Size
400/500/630 DIN
Cage Speed
300/250/200/150/100 rpm
Construction
Steel fabricated rotor design supported on bearing At both ends.
Bobbin Holding
On Pintle
Pintle Actuation
Motorised / pneumatic / manual (Optional)
Bobbin Loading
Batch loading/single bobbin loading
Bobbin Tension
Uniform pay-off wire tension by individual touch arm.
Haul-off-unit
Double Wheel Capstan upto 1200mm-3000mm dia
Take up reel size
2500mm-4500 mm flange dia
Drive
AC/DC drive with mechanical shaft synchronization or individual drives with electronic synchronization of line.
